For "The Making of" video, please watch this in Youtube:
It is how the Watch will look like after Application of DIY skin.
Thursday, June 11, 2015
Full Body DIY Protective Skins for Apple Watch

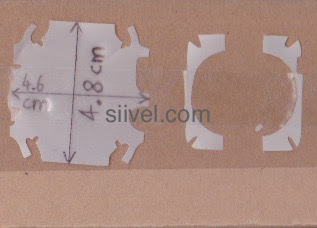

Just finished making a full body protective skin for the Apple Watch. The image below is the blueprint in scale.
http://youtu.be/e2bWSjk1ZkM
Saturday, June 6, 2015
iMac G3 Mod - Its Innards
After we have custom-made a CRT back for the LCD Panel, we put all the hardwares needed therein, which include logic board, fan, harddisks, sound controller board, and wires.
Related Articles:
iMac G3 Mod - What is iMac G3?
iMac G3 Mod - iMac G3 "i7": an iMac G3 with i7 CPU
After several attempts and amendment, We were successful in putting those stuffs firmly and orderly inside the CRT back respectively, we call the whole structure "CRT-shaped Console" because it is now the brain of the new iMac.
In fact, connecting the wires between hardwares would be another challenge, it is because space inside the CRT-shaped Console is very limited. We have to use as least wires as possible to seize every milli-meter inside the Console.
Apart from making a CRT-shaped Console, we also retain the video board inside the iMac. By doing so, the modify iMac will be more resemble to the original one. However, this improvement comes with the expense of a heavier iMac.
Related Articles:
iMac G3 Mod - What is iMac G3?
iMac G3 Mod - iMac G3 "i7": an iMac G3 with i7 CPU
Written by: Erik Siivel (@siivel.com)
Modder | Producer | Blogger | Youtuber
Email: siiveldotcom@gmail.com
Thursday, June 4, 2015
iMac G3 Mod - The Side Panel
Just finished making the Side Panel of iMac G3 i7 Version 2.0. Compare with the Version 1, this version has greater connectivity ability.
(1) Mic Jet;
(2) 3.5mm Stereo Jet;
(3) Firewire Port (could be changed to USB 3.0);
(4) and (6) USB 3.0;
(5) a Thunderbolt Cord; and
(6) Gigabite Ethernet.
Mic and speaker jets are new features of Version 2.
If you still have vintage devices like iSight Camera, iPod Gen 1-3 ..., you still need a FireWire Port, or just dropped it.
As there is no "female" Thunderbolt Port available in the market (unless being disassembled from a Thunderbolt device), the Thunderbolt Jet has no choice but to be built this way.
